Product Detail

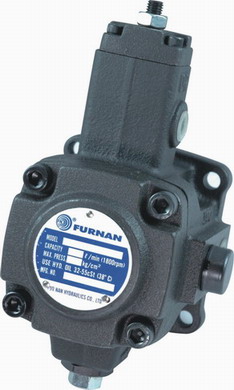

NO.: VHI-30,40,45 Class: Variable Displacement Vane Pump


◆Variable Displacement Vane Pumps courses on the required oil quantity of hydraulic circuits. Therefore, the design is to improve the circuit efficiency, lower the noise and oil temperature to make the work effect and achieve the purpose of saving the power. Available for a grinding machine, an automatic lathe, a main processor, a shoes-making machine and the machines for other purposes or a monostable machine.

型式號碼表示法 / MODEL NUMBER DESIGNATON
   VHI──F──30──A2 -   -T9
     ①       ②      ③        ④       ⑤

① 系列號碼Serial Nunber
裝配型式Assemble model  F:法蘭型 Frange Type   L:腳座型 Foot Type
③ 吐出量Delivery capacity
④ 壓力調整範圍Range of Adjusting    A1:8-35 kg/cm²          A2:35-70 kg/cm²
⑤ 設計號Desing Number                    T :花軸 Spline Shaft     B:軸15.875mm

性能表 / SPECIFICATION
型式
號碼
MODEL
最高壓力
MAX
PRESSURE
kg/cm2
吐出量
OUTPUT FLOW
AT 3.5kg/cm2
1800 r.p.m.
l/min
配管尺寸
PORTS SIZE
回轉速度
SPEED (r.p.m)
重量
WEIIGHT (kg)
出口
OUT
入口
IN
回油
DR.
最低
MIN
最高
MAX
腳座型
FOOT
TYPE
法蘭型
FLANGE
TYPE
VHI-30
70
30
1/2”
3/4”
1/4”
900
1800
12
9.1
VHI-40
70
40
1/4”
VHI-45
70
45

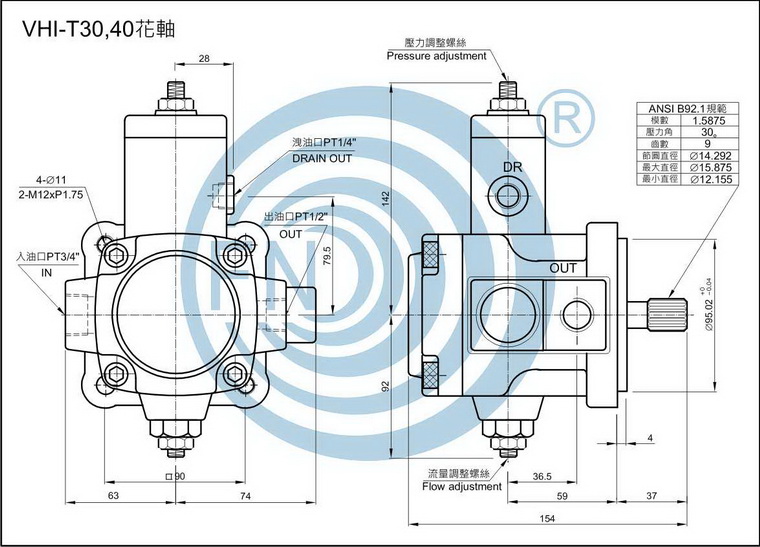

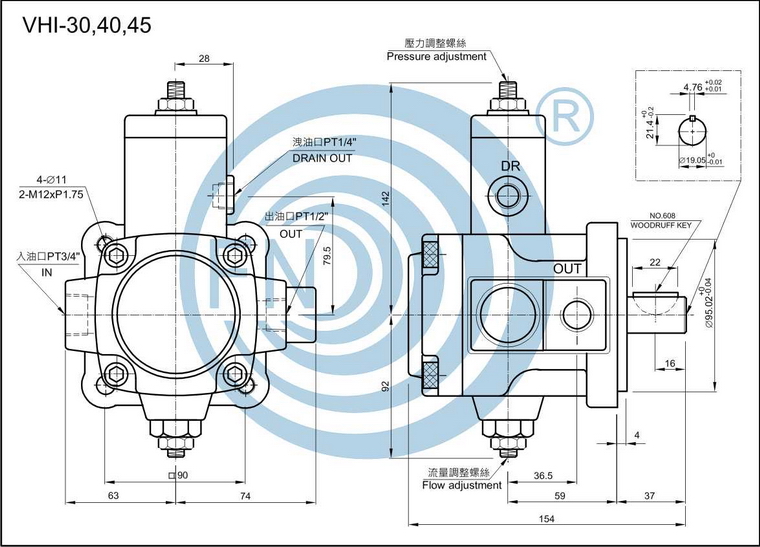

◆外觀尺寸圖 / DIMENSIONS(IN MILIMITERS)
