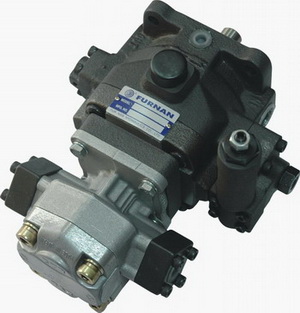

NO.: VHP+PA Class: Variable Displacement Vane Pump

特點 / FEATURES:
1. 共用一心軸及馬達,節省空間。
2. 高低壓雙段組合幫浦,高壓幫浦可由客戶指配合
1. Employed same shaft & motor, occupied little space.
2. Available for the user to pre-appoint the One-Step Pump of High Pressure and the High-Low Pump.


型式號碼表示法 / MODEL NUMBER DESIGNATON
    VHP──F──30  +  PA ──A3
     ①         ②      ③        ④        ⑤


① 系列號碼Serial Nunber
裝配型式Assemble model     F:法蘭型 Frange Type    L:腳座型 Foot Type
③ 吐出量Delivery capacity
④ 高壓齒輪幫浦(可由客戶指定)Gear pumps
⑤ 壓力調整範圍Range of Adjusting             A1: 8-35 kg/cm²
                                                                   A2: 35-70 kg/cm²
                                                                   A3: 70-140 kg/cm²


性能表 / SPECIFICATION
型式
號碼
MODEL
最高壓力
MAX
PRESSURE
kg/cm2
吐出量
OUTPUT FLOW
AT 3.5kg/cm2
1800 r.p.m.
l/min
配管尺寸
PORTS SIZE
回轉速度
SPEED (r.p.m)
重量
WEIIGHT(kg)
出口
OUT
入口
IN
回油
DR.
最低
MIN
最高
MAX
腳座型
FOOT
TYPE
法蘭型
FLANGE
TYPE
 VHP-20+PA        140         20+PA 1/2”  3/4” 3/8” 900 1800  12+PA   9.5+PA
 VHP-30+PA        140         30+PA 1800  12+PA   9.5+PA
VHP-40+PA
105
  40+PA
9.5+PA
VHP-54+PA
140
  54+PA
3/4”     1” 3/8”  800 1800  35+PA   25+PA
 35+PA
VHP-70+PA
105
       70+PA
1800
25+PA
VHP-86+PA
 105
       86+PA


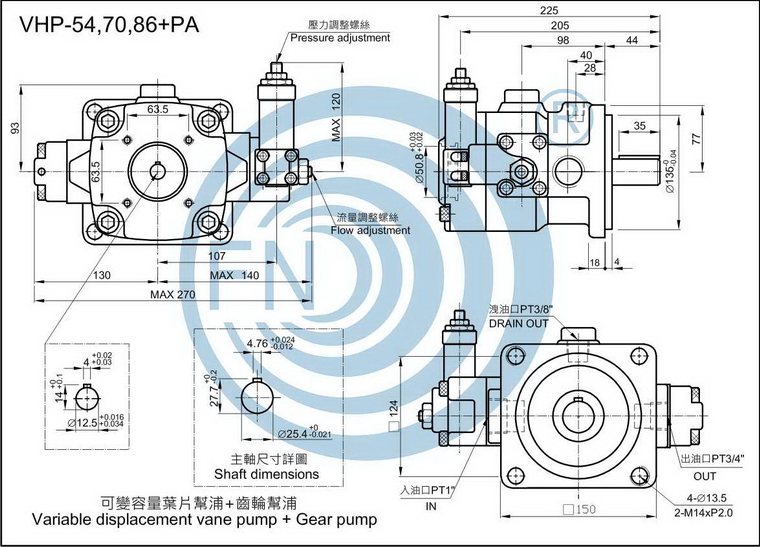

◆外觀尺寸圖 / DIMENSIONS(IN MILIMITERS)
