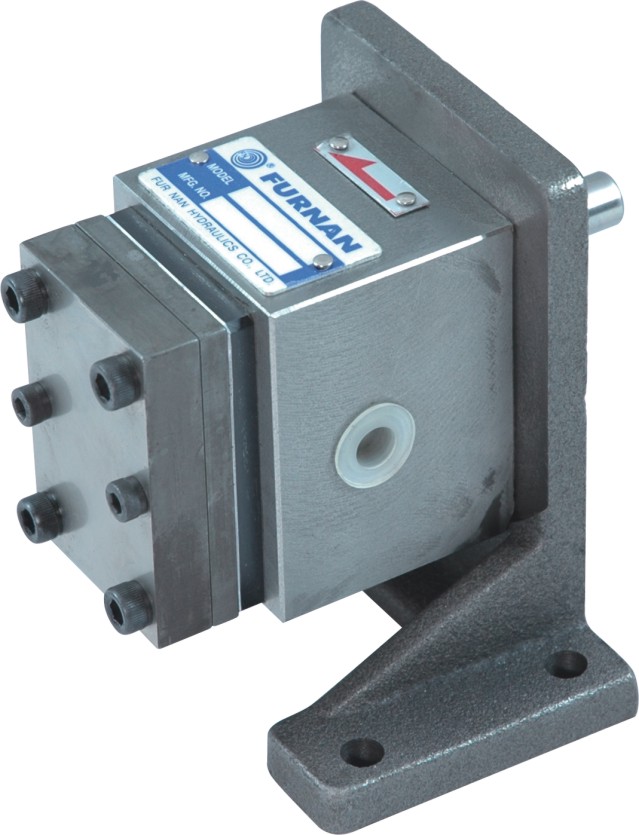

◆Gear Pumps the small exhaling pulse, the stable continuous high-pressure operation, and long life make the high pressure stable even though we use it in a long time. Available for the ordinary industry machines, the civil construction, the heavy-duty machinery and other machines with special purposes.  Also, there is a special pump for chemistry.

◆型式號碼表示法 / MODEL NUMBER DESIGNATON

   SKD──01── L──R

     ①         ②       ③     ④



① 系列號碼Serial Nunber

② 吐出量 Dilivery capacity

③ 裝配型式 Assemble model   L:腳座型 Foot Type

                              F:法蘭型 Frange Type

④ 回轉方向 (自軸側觀之) Direction of Revolving

                      R:順時針方向Clock wise Direction

                      L:反時針方向counter-clockwise direction







◆ 注意事項 /最高回轉速度和最高壓力是以礦物油係循環油為基準.

    PU（聚氨酯）強列建議回轉速度200~600rpm高壓力50~70kg/cm².



◆性能表 / SPECIFICATION

型式 號碼 MODEL	最高壓力 MAX PRESSURE kg/cm2	吐出量 OUTPUT FLOW ㏄/rec	配管尺寸 PORTS SIZE		回轉速度 SPEED r.p.m		重量 WEIIGHT(kg)
			出口 OUT	入口 IN	最低 MIN	最高 MAX
SKD-01	70	1	1/4	1/4	300	1200	3.3
SKD-03		3					3.5
SKD-05		5					3.9



◆外觀尺寸圖 /(DIMENSIONS (IN MILIMITERS)

SKD-Model.rar
