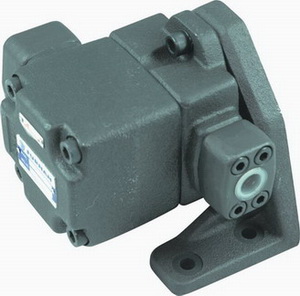

◆  A high-pressure blade pump has the features of low noise, high efficiency and little horse power to correspond with the hydraulic machines, such as, a plastic injection forming machine, a press casting machine, a press, a folding machine, a form-squeezing machine, a main processor and a monostable machine.

◆型式號碼表示法 / MODEL NUMBER DESIGNATON



    PV2R1── 25──  F──R

       ①             ②         ③     ④



 ① 系列號碼Serial Nunber

 ②吐出量 Dilivery capacity

 ③裝配型式 Assemble model      L:腳座型 Foot Type

                                                    F:法蘭型 Frange Type

 ④ 回轉方向 (自軸側觀之) Direction of Revolving

                                                    R:順時針方向Clock wise Direction

                                                    L:反時針方向counter-clockwise direction





 ◆性能表 / SPECIFICATION

型式 號碼 MODEL	吐出容積  cc/rev DELIVERY CAPACITY				使用壓力kg/cm2 OPERATNG PRESS		回轉速度 SPEED r.p.m		配管尺寸PT PORTS SIZE		重量 WEIIGHT (kg)
	迴轉速度SPEED( r.p.m)				最高 MAX	定格 RATED	最高 MAX	最低 MIN	出口 OUT	入口 IN	腳座型 FOOT TYPE	法蘭型 FLANGE TYPE
	1000	1200	1500	1800
PV2R1-06	6.1	7.3	9.2	11.3	210	175	1800	950	1”	1/2”	11.2	9
PV2R1-08	8.0	9.5	12.0	14.5
PV2R1-10	10.1	12.2	15.4	18.4
PV2R1-12	12.2	14.2	18.1	21.8
PV2R1-14	13.7	17.0	21.5	25.6
PV2R1-17	16.6	20.5	25.6	30.7
PV2R1-19	18.6	23.0	28.8	34.5
PV2R1-23	22.7	27.9	34.9	41.9
PV2R1-25	25.3	30.0	37.3
PV2R1-31	31.0	37.3	46.06		*175	*160
PV2R2-26	26	31.2	39	46.8	210	175	1800	950	1 1/4”	3/4”	23.3	19
PV2R2-33	33.0	38.5	48.1	57.7
PV2R2-41	41.3	49.2	61.5	73.8
PV2R2-47	47.2	57.8	71.3	86.6
PV2R2-53	53.1	63.5	79.7	95.8
PV2R2-59	59.2	71.0	88.8	106.9
PV2R2-65	65.2	78.0	97.8		*175	*160	1500
PV2R2-75	75	90	112				1500
PV2R3-76	76.4	91.5	114.4	137.2	210	175	1800	950	2”	1 1/4”	46.7	36.7
PV2R3-94	93.8	113.5	141.6	169.8
PV2R3-116	115.6	139.2	174.0		*175	*160	1200
PV2R3-  125	125	150	187.5				1200



◆外觀尺寸圖 / DIMENSIONS(IN MILIMITERS)
