| Product Detail |
| NO.: |
150T |
Class: |
Fixed Displacement Vane Pump |
|
 |
| |
◆Because of stable capability, the range of exhalation is the widest. Low noise, high efficiency, little horsepower, and vane pump. Available for the main processors, such as, a grilling machine、 a press machine、
a folding machine. Also, the hydraulics machinery, like press casting machine, plastic injection and monostable machine are suitable for the low-pressure pump that belongs to the oil outlets on the high and low pressure.
◆型式號碼表示法 / MODEL NUMBER DESIGNATON
150T 116─── F──R
① ② ③ ④
① 系列號碼Serial Nunber
②吐出量 Dilivery capacity
③裝配型式 Assemble model F:法蘭型 Frange Type
L:腳座型 Foot Type
④ 回轉方向 (自軸側觀之) Direction of Revolving ( Side View of Self Aligning Bearing)
R:順時針方向Clock wise Direction
L:反時針方向counter-clockwise direction
◆性能表 / SPECIFICATION
|
型式號碼
MODEL |
吐出容積 cc/rev
DELIVERY CAPACITY |
最高壓力
MAX. PRESSURE
kgf/cm2 |
迴轉速度
SPEED r.p.m |
配管尺寸PT
PORTS SIZE |
重量
WEIGHT (kg) |
|
最低
MIN |
最高
MAX |
入口
IN |
出口
OUT |
腳座型
FOOT
TYPE |
法蘭型
FLANGE
TYPE |
|
迴轉速度SPEED( r.p.m) |
|
1000 |
1200 |
1500 |
|
|
50T-07 |
7.0 |
8.2 |
10.3 |
12.5 |
70 |
950 |
1800 |
1” |
3/4” |
10.5 |
9 |
|
50T-12 |
12.2. |
14. 3 |
18.2 |
21.5 |
|
50T-14 |
14.5 |
17. 3 |
21.5 |
26 |
|
50T-17 |
17.1 |
20.2 |
25.5 |
31.5 |
|
50T-20 |
20.0 |
23.8 |
29.8 |
36.1 |
|
50T-23 |
23.1 |
27.4 |
34.3 |
41.3 |
|
50T-26 |
26.2 |
31.2 |
39.2 |
46.5 |
|
50T-30 |
30.2 |
36.2 |
45.2 |
54.1 |
|
50T-36 |
36.2 |
41.5 |
54.5 |
64.2 |
|
50T-39 |
39.0 |
46.6 |
58.3 |
|
1500 |
| 50T-43 |
43 |
51.6 |
64.5 |
|
1500 |
|
150T-48 |
48.2 |
58.0 |
72..6 |
86.4 |
70 |
900 |
1500 |
1 1/2” |
1 1/4” |
26 |
25 |
|
150T-61 |
61.4 |
73.8 |
92.0 |
110.6 |
|
150T-75 |
75.0 |
90.5 |
113.1. |
135.6 |
|
150T-94 |
94.0 |
113.1 |
141.3 |
|
|
150-116 |
116.2 |
139.5 |
174.2 |
|
| 150-125 |
125 |
150 |
187.5 |

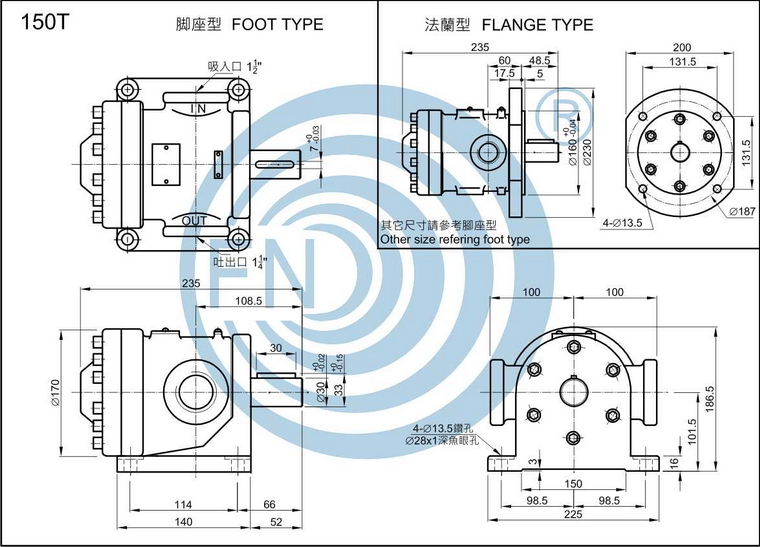

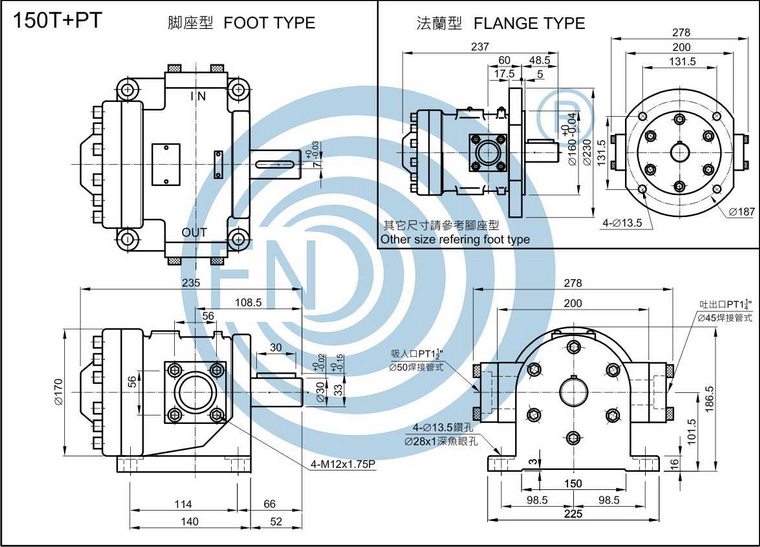

◆外觀尺寸圖 / DIMENSIONS(IN MILIMITERS)
|
